Direct Drive AutoDrill Selfeeder Style Unit

For many, many years, self feeding automatic drills have been sold by a number of companies around the world.

A few years ago, AutoDrill entered the arena and has taken off.

AutoDrill’s production drilling solutions solve the problem that most shops eventually have – efficiency!

Whether they are too busy to keep up or facing tough times, companies often need to become more efficient.  AutoDrills line of single spindle and multi-drill products do just that – they bring an efficient answer to an often complex pattern of problems.

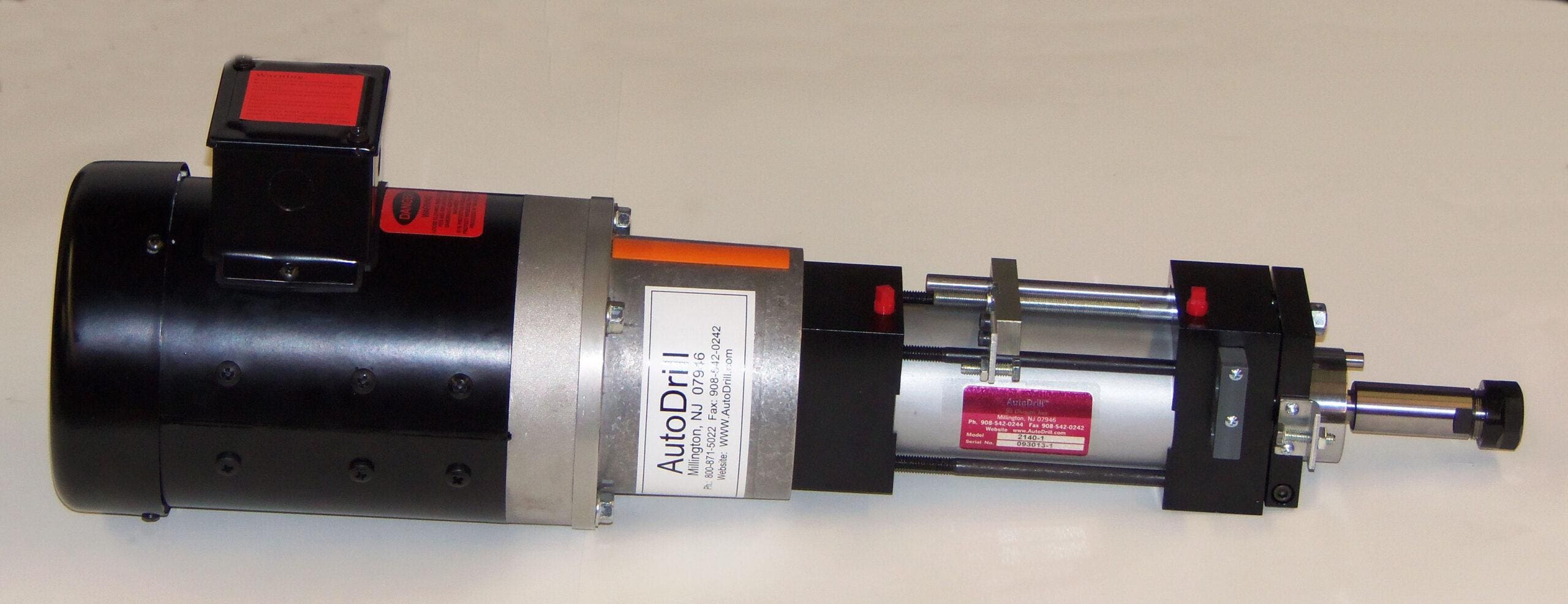

Direct Drive AutoDrill V2

Direct Drive AutoDrill V2

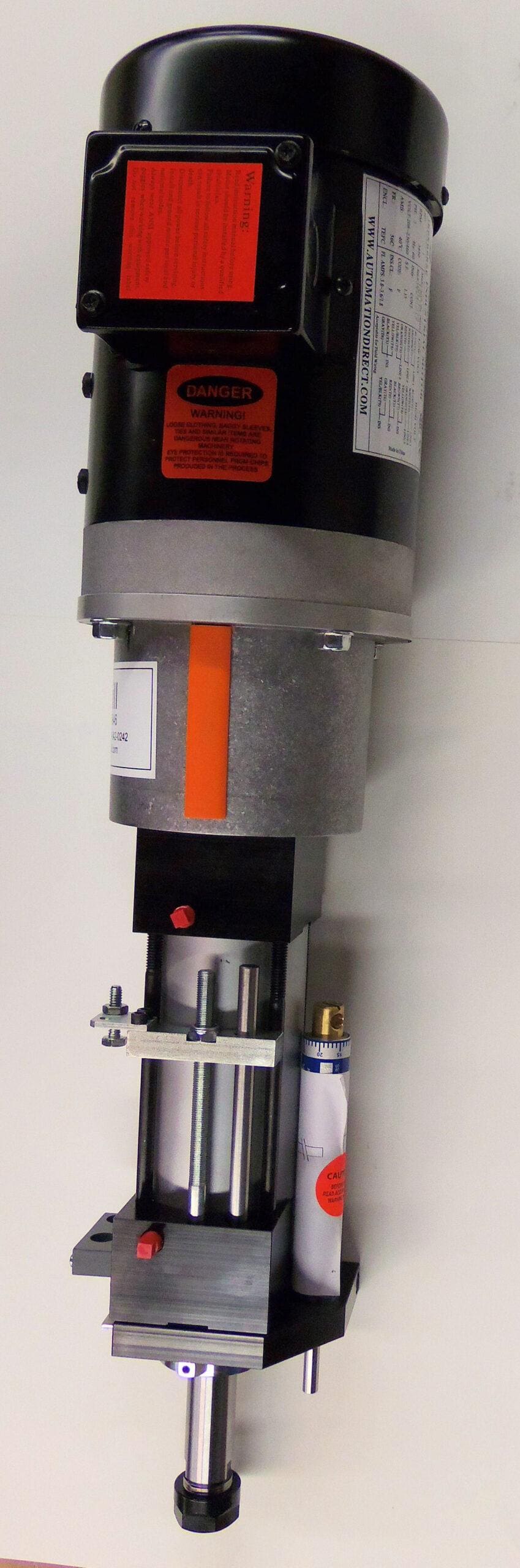

Direct Drive AutoDrill

Direct Drive AutoDrill

The unit shown above is only one of many models sold by AutoDrill.  It is a direct drive model where the input:output ratio is 1:1 for the motor:drill set-up.  What does this mean?  Well, for most people, it simply means a slim, compact but powerful drill.  For others, it means that a VFD or inverter set-up can be used to infinitely adjust the RPM rate for the machine while it performs it’s process.

With reversing motors, rigid or radial/linear float tap processes can be performed.

This unit can be driven by single phase, three phase, special voltage/type motors, air or even hydraulic drive motors.

Whether you need to drill a single hole on many parts or drill many holes in a complex pattern, AutoDrill likely has a solution to help you. Above and beyond that, we specialize in providing world class support so that even if we can not directly help you, we likely know who can.
Please CONTACT US to discuss your application and receive prompt product cost, literature and technical help. We look forward to serving you as best as we can.  Your success is our success!

2 Responses to "Direct Drive AutoDrill Selfeeder Style Unit"

Mark Johnson

May 7, 2014 at 8:15 pm

Hello
I am designing a custom drilling machine for a customer. I need a direct drive drill motor with a chuck or collet, it does not need to be self feeding. I need the direct drive for for compact size, my specifications are below.

1/3-3/4 HP
The drill bit will always be 5/16 dia.
The material we will be drilling is acrylic plastic
RPM 1200-1500 fixed (single RPM in this range)

Do you make anything that would fit these specifcation?

Mark Johnson
hst7990@xxxx.com
815-403-xxxx

AutoDrill

May 8, 2014 at 7:56 am

A direct e-mail reply is being sent shortly by one of our engineers. Please use http://www.drill-hq.com/contact-us/ or direct e-mail to contact us in the future as it will receive a much faster reply.

You may also call 01.908.542.0244
