5200 Series AutoDrill

The Series 5200 Self-Feeder unit is a heavy duty drill based on the Series 5000 AutoDrill with the addition of a pull style Hydro Speed feed cylinder. Dual speed feed rate is standard. The Hydro Speed will control the critical work penetration feed rate and breakthru process. Because the unit has a pull style feed control, we are able to control the feed rate in both the forward and retract direction when needed. The pull style unit also allows AutoDrill to add multiple drill spindle heads to the unit as the Hydro Speed does not require a stop to be provided by the customer. These heads then allow you to drill many holes with a single machine.

The HydroSpeed is essentially built right in to the unit! As an added benefit, the 5200 series AutoDrill can be equipped with a fully adjustable SkipFeed or StopFeed.

The 5200 Series AutoDrill’s features are:AutoDrill 5260 Series

  • Perfectly designed for multiple drill head applications
  • Self feeding drill capabilities
  • Spindle stroke from minimum to 6.000″
  • Feed control for up to the full 6.000″ of stroke
  • Two Speed stroke control
  • Infinitely variable drill feed control
  • Cleaner hole breakthrough where less or no burr is desired
  • Self feeding reaming, deburring and countersinking / small counterbore capabilities
  • Thrust forces to 1000 lbs on shop air
  • Multiple motor drive options available to suit the application
  • Spindles speeds from less than 80 to 4,000 RPM
  • Custom configurations for close C-C drilling
  • Built-in precision depth control
  • All position mounting options
  • Key-Type Chuck (1/2″ or 3/4″ capacity
  • Industry Standard ER Style Collet Chuck (ER16, ER20, ER25 and ER32)

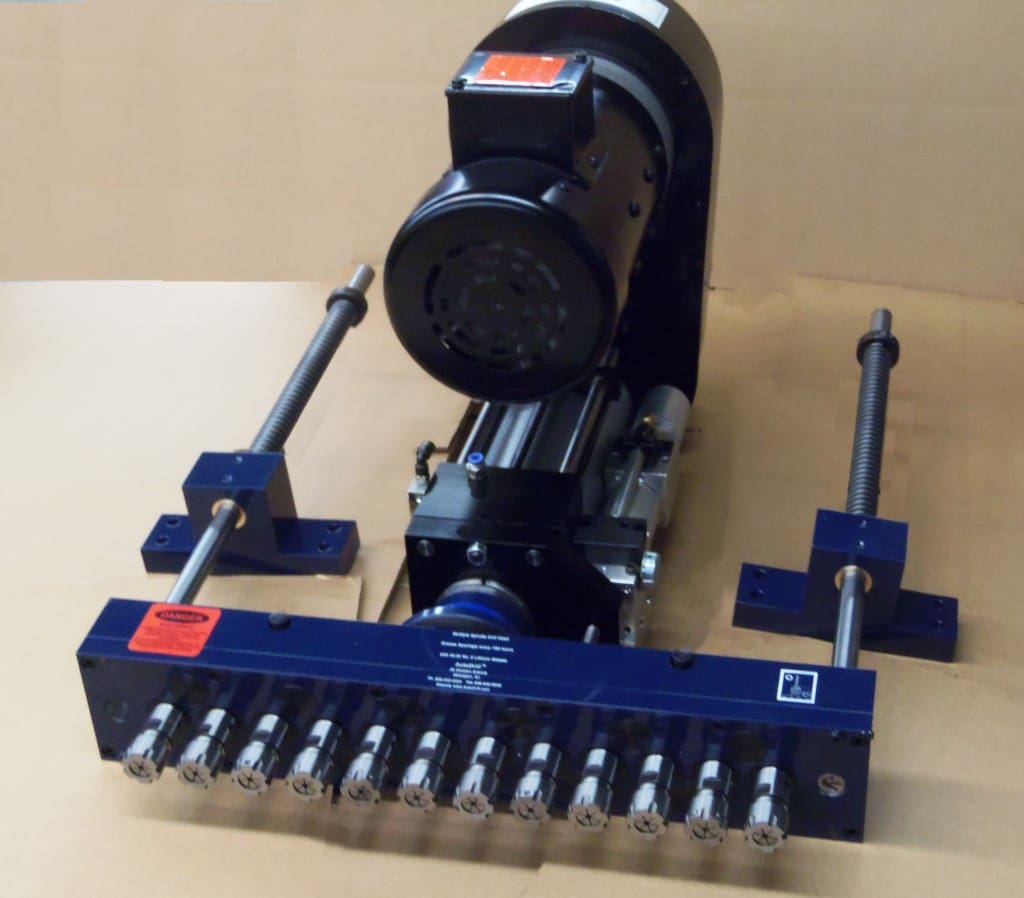

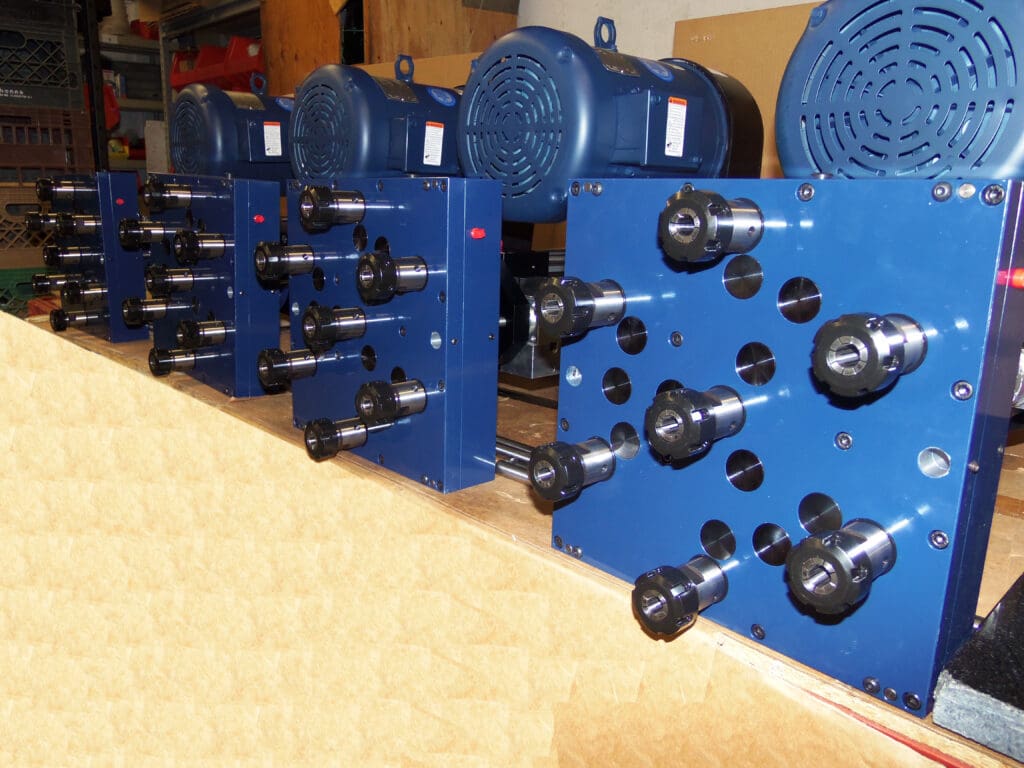

  • Two, three and four spindle adjustable headsAutoDrill 5260 Series
  • Two or more spindle fixed pattern heads (Single spindle off-set heads also available)
  • Custom spindles available for your special tooling
  • Electric or Air Motor drive options up to 3 HP
  • Improved counterbore and countersink finishes
  • Extended capacity with the precision feed control
  • Optional dual direction feed control, independently adjustable
  • SkipFeed (useful when drilling tube or extrusions with a “void” between the drilled walls of material
  • StopFeed (useful for when you want to “dwell” in a specific location – such as when stroking a brush or sitting at the bottom of a blind hole, etc.)

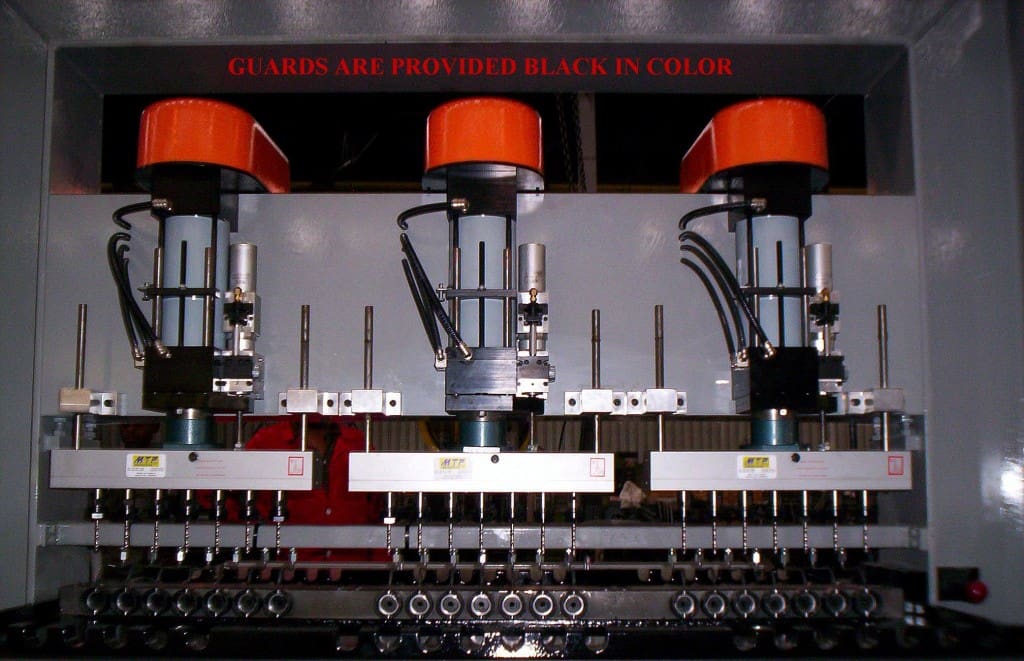

  • Drill multiple holes with a single machine using multi prong drills and tools

Whether this unit helps you make more product in the same amount of time (cost savings) or simply helps you to keep up with high volume requests (higher production), the 5200 series self-feed unit is an excellent choice.

Some of the many uses for the 5200 AutoDrill series are:

  • Plate and structural steel hole drilling operations
  • Pipe drilling
  • Drilling multiple holes with a single unit
  • Flow Drilling or Form Drilling of holes
  • High thrust applications (up to 1000 lbs. on standard shop air)AutoDrill 5260 Series
  • Deep hole operations up to 6.000″
  • Depth controlled drilling applications
  • Operations requiring all position mounting
  • Operations requiring through the spindle coolant
  • Large Morse Taper tooling requirements
  • Available with air motor drives for explosion-proof operations using inert gas
  • Make many holes with a single machine

…And many more. Please contact us with any questions or for a no obligation quotation.
