2200 Series AutoDrill

The Series 2200 AutoDrill is based on the Series 2000 AutoDrill with the addition of a pull style Hydro Speed feed cylinder. This addition overcomes the limitation of pneumatic feed control. Two speed feed rate is standard. The Hydro Speed controls the critical work penetration feed rate and breakthrough process. Because the unit has a pull style feed control, we are able to control the feed rate in both the forward and reverse direction when needed. The pull style unit also allows AutoDrill to add multi-drill heads to the unit as the Hydro Speed does not require a stop to be provided by the customer. It is built right in to the unit! This allows you to drill many holes with a single machine.

The Hydro Speed can be provided on either the right or the left side of the AutoDrill for custom applications although the right side on the self feeder is standard. This flexibility is appreciated when drilling closely spaced holes or on special projects. It also simplifies maintenance since it can be adjusted without disturbing the AutoDrill body or custom fixturing.

The 2200 Series AutoDrill’s features are:

  • Perfectly designed for multi-drill applications
  • Self feeding drill capabilities
  • Spindle stroke from minimum to 9.000″
  • Feed control for up to 8.000″
  • Two Speed stroke control
  • Infinitely variable drill feed control
  • Cleaner hole breakthru where less or no burr is desired
  • Self feeding reaming, deburring and countersinking / small counterbore capabilities
  • Thrust forces to 500 lbs on shop air
  • Multiple motor drive options available to suit the application
  • Spindles speeds from 80 to 6,000 RPM
  • Custom configurations for close C-C drilling
  • Built-in precision depth control
  • All position mounting options
  • Key-Type Chuck or Precision ER Style Collet Chuck (ER16, ER20, ER25 and ER32)
  • Two to four spindle adjustable heads
  • Two or more spindle fixed pattern heads (Single spindle off-set heads also available)
  • Custom spindles available for your special tooling
  • Electric or Air Motor drive options up to 2 HP
  • Improved counterbore and countersink finishes
  • Extended capacity with the precision feed control
  • Optional dual direction feed control, independently adjustable
  • Can drill many holes at once with multi prong drills and tools

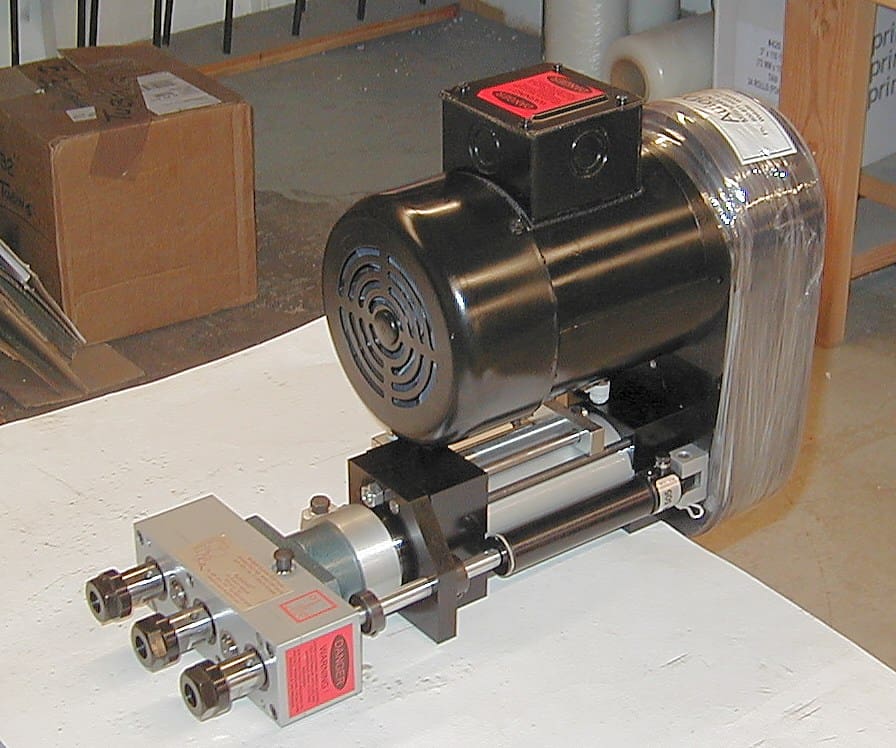

2240 With Multi Drill
