2100 Series AutoDrill

The Series 2100 AutoDrill is based on the Series 2000 unit with the addition of a plunger style Hydro Speed feed cylinder. This addition overcomes the limitation of simple pneumatic feed control. The two speed feed rate is standard. The Hydro Speed (sometimes called Hydra-Brake) controls the critical work penetration feed rate and breakthrough process. Check out our videos section for examples of a Hydro Speed in use or see the simple animation below which shows a basic 2100 Series Self-Feed AutoDrill  stroking.

2100 Series Example

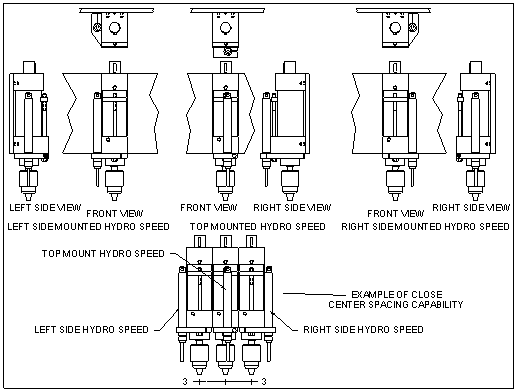

The Hydro Speed can be provided in multiple locations. This flexibility is appreciated when drilling closely spaced holes or on special projects where flexibility is critical. It also simplifies maintenance since it can be repositioned or replaced without disturbing the AutoDrill body. The diagram below displays the basic optional locations. (Right side on the self feeder is always standard)

The 2100 Series AutoDrill’s features are:
  • Self feeding drill capabilities
  • Two speed stroke control
  • Infinitely variable drill feed control
  • Cleaner hole breakthru where less or no burr is desired
  • Self feeding reaming, deburring and countersinking / small counterbore capabilities
  • Can receive and drive multiple drill spindle attachments
  • Thrust forces to 500 lbs on shop air
  • Multiple motor drive options available to suit the application
  • Spindles speeds from 80 to 6,000 RPM
  • Spindle stroke from minimum to 9.000″
  • Feed control for up to 6.000″
  • Custom configurations for close C-C drilling
  • Built-in precision depth control
  • All position mounting options
  • Standard Key-Type Chuck
  • Precision ER Style Collet Chuck (ER16, ER20, ER25 and ER32)
  • Custom spindles available for your special tooling
  • Electric or Air Motor drive options up to 2 HP
  • Improved counter-bore and countersink finishes
  • Extended capacity with the precision feed control
  • Optional SkipFeed for multi-wall tube and extrusion drilling
  • Optional PeckFeed for deeper hole drilling processes

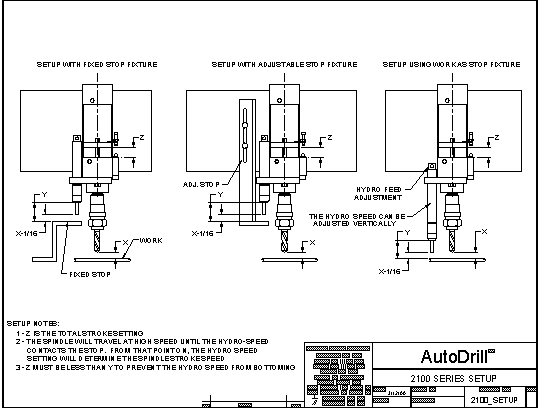

The diagram shows the basics on how the 2100 Series AutoDrill is setup for two speed operation:
