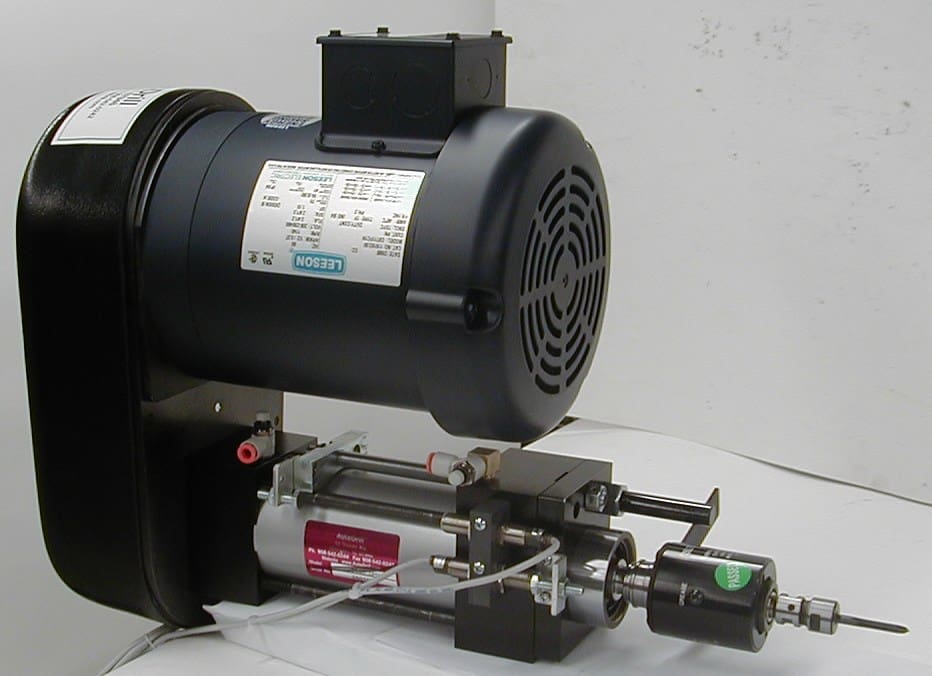

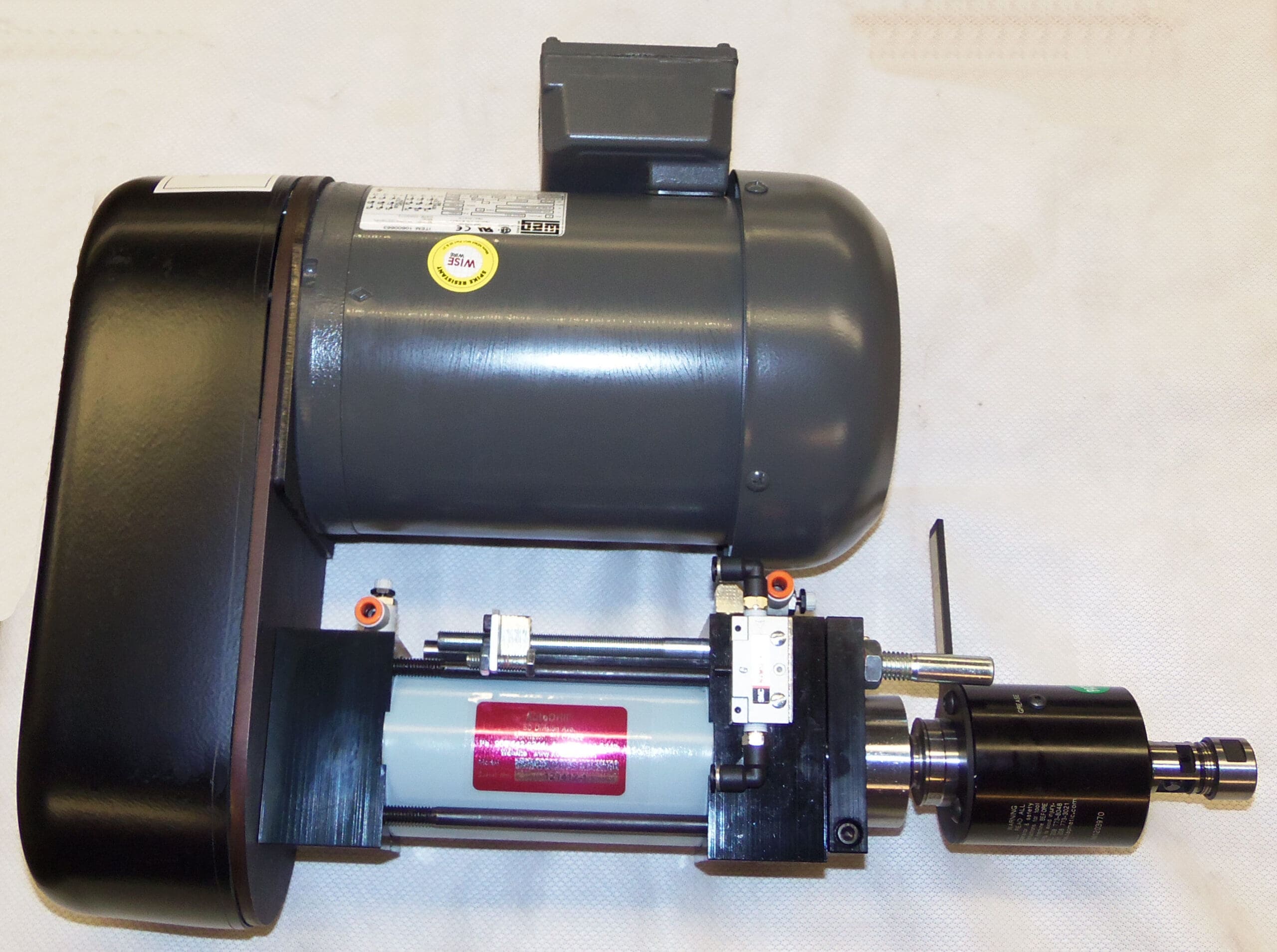

2000 Series Control-Feed AutoTaps

The Self-Feeding AutoTap models gives you the excellent AutoDrill 2100 unit as a platform for a Self-Reversing tapping head. At times, this allows a single unit to be used for both drilling and tapping. Because of the Self-Reversing tap head, there is no need for the motor drive to change direction. The AutoTap is capable of any thread configuration within its capacity range without any internal changes. No longer is it necessary to have an individual lead screw for each thread pitch. The unit can be configured quickly to work for multiple size or pitch tap tools. This keeps the cost reasonable and the operation setup to a minimum.

Here are just some of the Control-Feed AutoTap features and options:

  • Only AutoDrill offers the Control-Feed advantage
  • Positive forward and reverse drive
  • Ability to drive more than a single tap at once (gang drill or multi-drill heads holding 2+ taps)
  • Entry cushion for reliable work contact and elimination of cross threading on re-threading (thread chasing) operations
  • Compatible with cut or thread form (roll tap) operations
  • Three models handle up to 5/8″ capacity (cut tap)
  • Rubber-Flex collet
  • Optional quick change spindle available
  • Dual direction feed control for precise entry and exit
  • Optional SkipFeed for DRAP or fast cycle time applications
  • Factory assembled and tested

AutoTap Standard Selection

  • AutoTap SPD3 (up to 1/4″)
  • AutoTap SPD5 (up to 1/2″)
  • AutoTap SPD7 (up to 5/8″)
  • For larger holes, see the 5000 Series AutoTap

(Please contact AutoDrill to discuss your tapping application)
