Multi-Spindle Head for Drilling Three Offset Holes

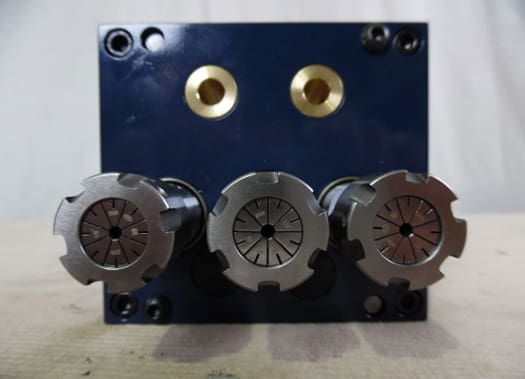

A customer required a solution to drill three close spaced holes near a wall. Typically, the device driving the multi-drill head can not be too close to the obstruction or wall because if its size. However, a multiple spindle drill head with three spindles offset from the input location answered both the close C-C drill head and the drilling near an obstruction requirements with a single tool. The cost was less than $2000 including the adapter and ER style collets and spindles. If you shop around, you will find this is an extremely low cost for this type of item. The photo is the actual three spindle offset drill head designed for the customer. Some vendors would call this an aggregate head. The spindles in this example utilized universally available ER25 style drill collets.

Off-Set Drill (Aggregate) Head

Three Spindles Off-Set to Side
