Five Spindle Gang Drill Heads by AutoDrill

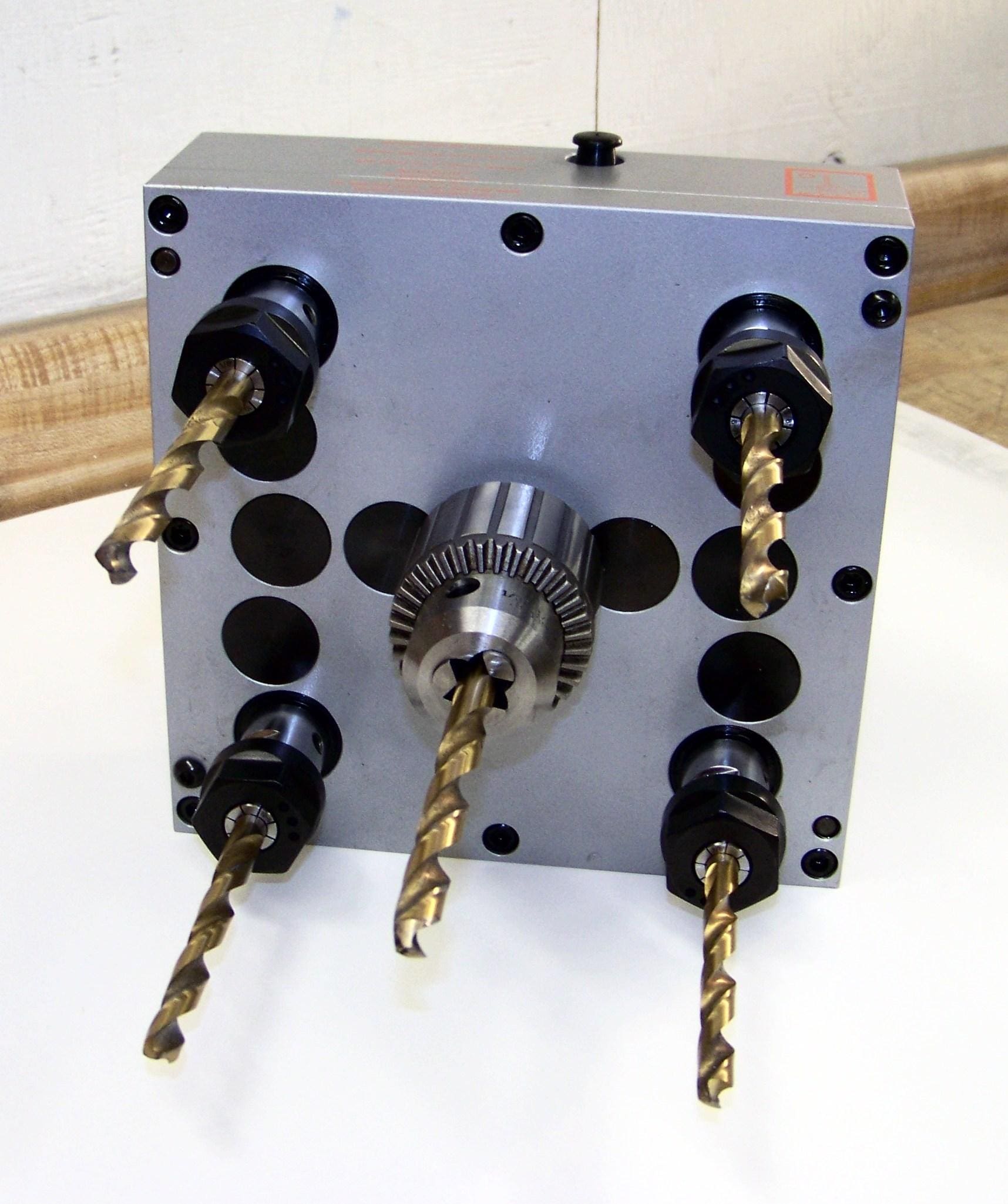

5 Spindle Key Type Chuck and ER Spindle Head

5 Spindle Key Type Chuck and ER Spindle Head

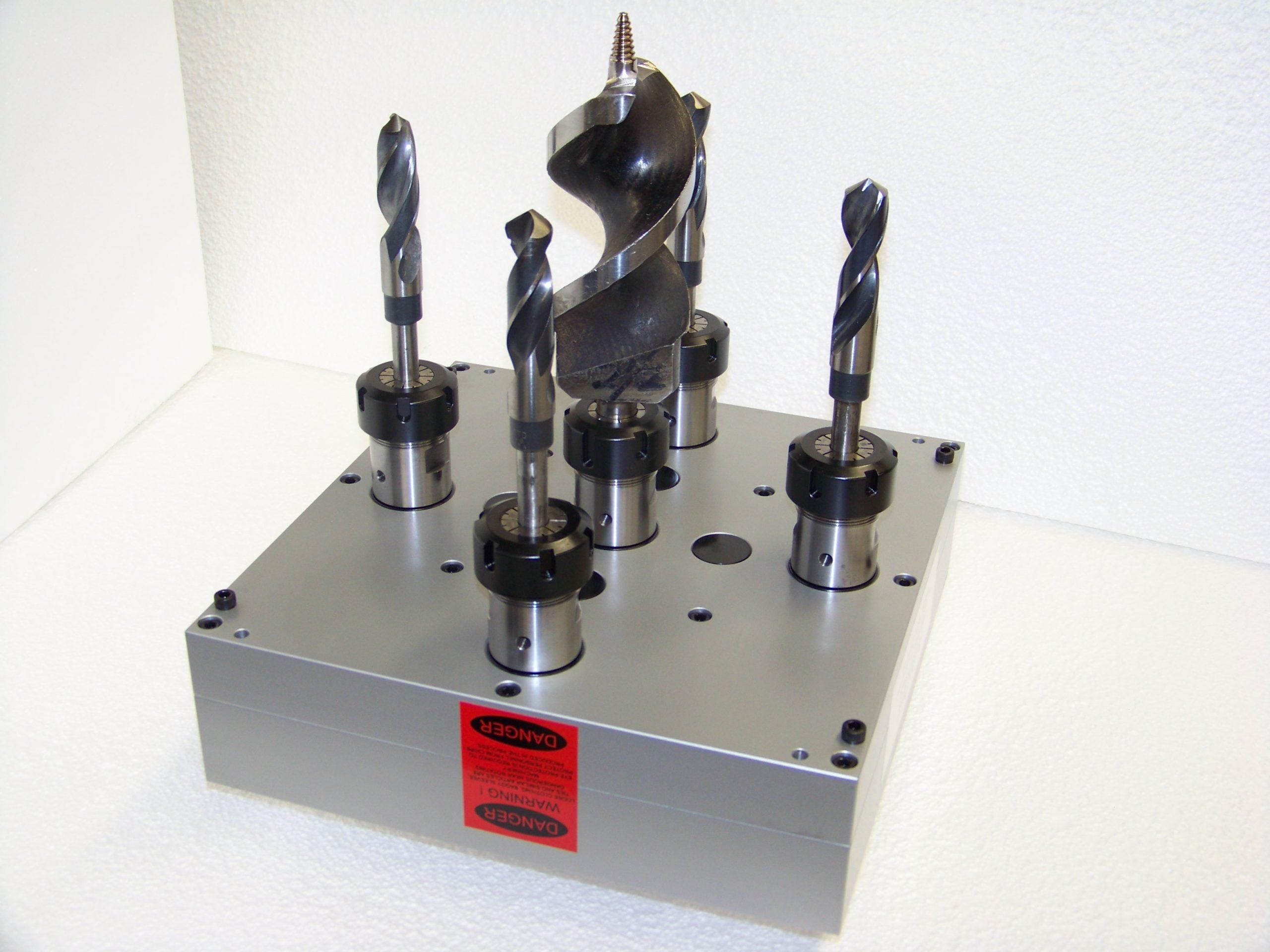

5 Spindle ER32 Large Pattern Multi Drill Head

5 Spindle ER32 Large Pattern Multi Drill Head



Both of these five spindle gang drill heads were made custom for customers.

The top is an ER20 / Jacobs Chuck style head for a customer drilling a smaller five hole pattern.

The bottom is a much larger ER32 designed head made for a spool or reel company. When you see large rolls of wire being used by someone, they come on a reel. These reels have a five hole pattern on both ends.  A large center hole for the spool spindle and the four outer holes for tie rods.



Please CONTACT US to discuss your application and receive prompt product cost, literature and technical help.

2 Responses to "Five Spindle Gang Drill Heads by AutoDrill"

mohsen vaseei

February 2, 2014 at 6:22 am

hi, i look for for automatic drilling machine
for production line of auto part, for example drilling
screw with length of 100 mm and 10,000,000 unit per year

AutoDrill

February 3, 2014 at 7:55 am

Hello,

You will receive a private e-mail from our representative shortly.

Thank you for your interest in our products.
