Snow DR-2 Multi-Drill Head
June 22nd, 2012
posted by AutoDrill
A customer of ours recently needed a two spindle head for their Snow DR-2 machine. Because the Snow machine has a very unique mounting system that integrates a pull-style feed control, AutoDrill designed a custom adapter for the machine.
-
- Side View Adapter – Snow DR-2 Multidrill Head
-

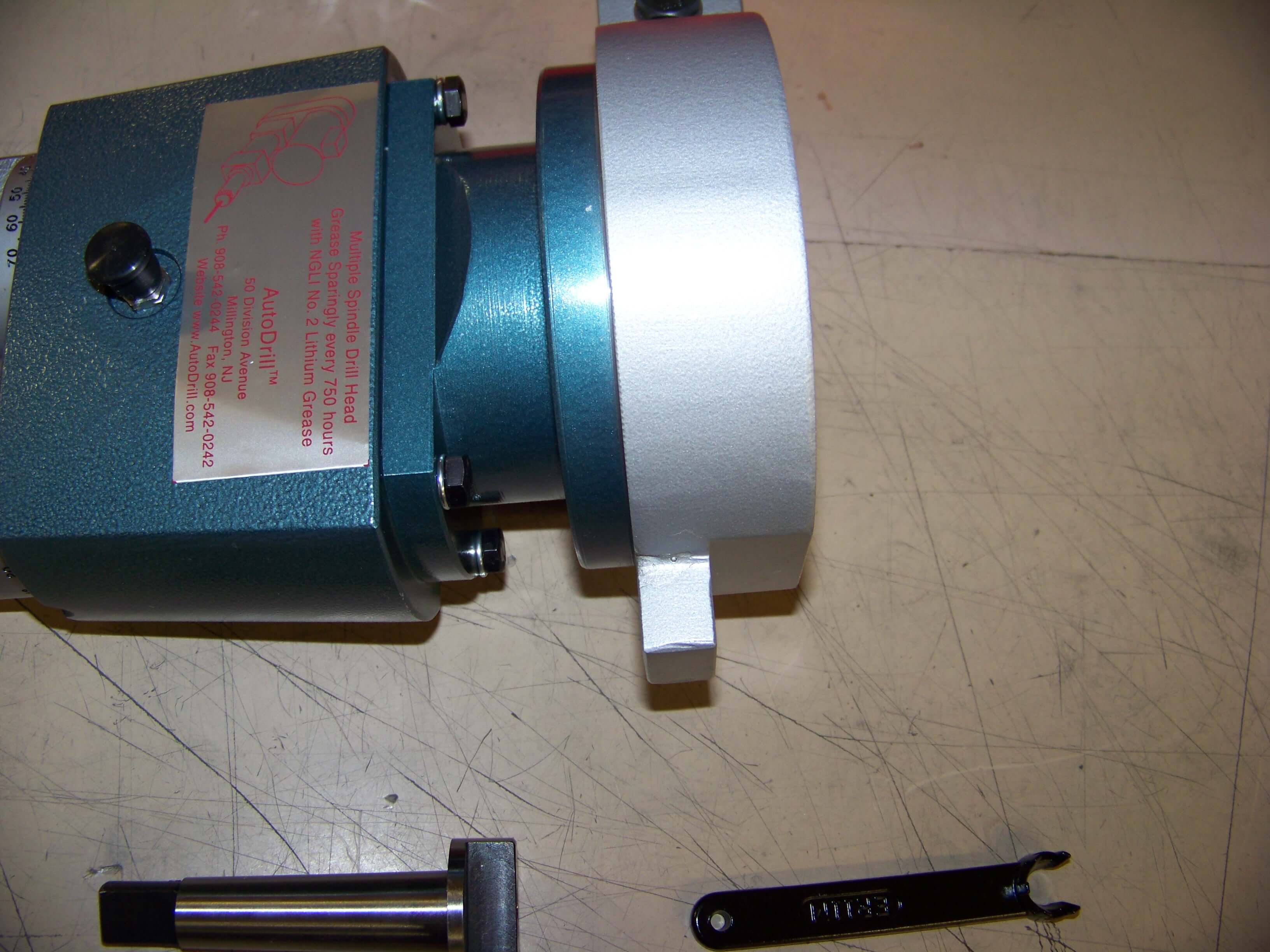

- Drive Tang Mate View – Snow DR-2 Two Spindle Head
-

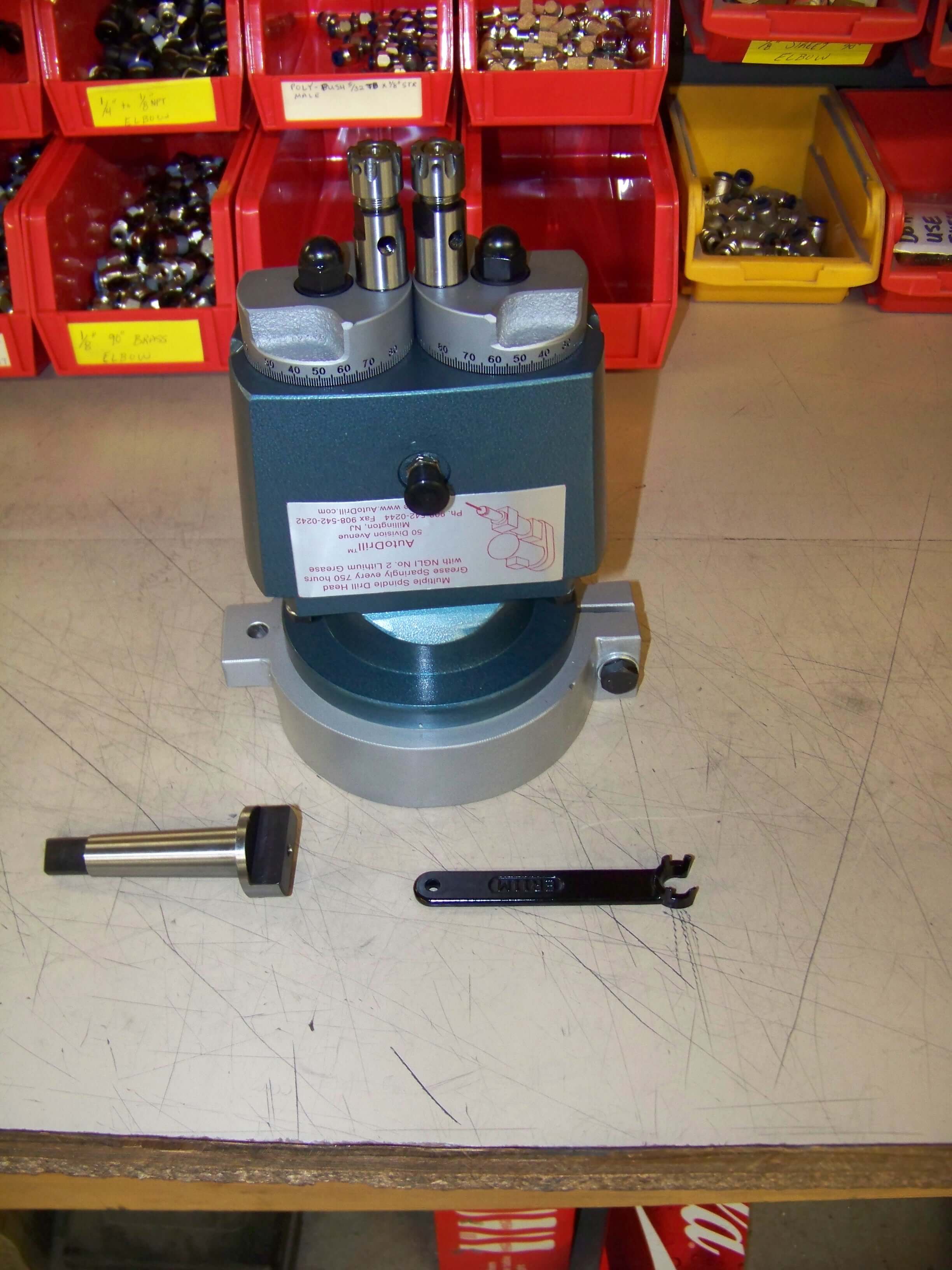

- Front View – Snow DR-2 Multi-Drill Head
Another customer called recently and said that Snow themselves will not offer them a multiple spindle drill head for their machine. We look forward to providing the best support in the industry to that customer as well!
Please CONTACT US to discuss your application and receive prompt product cost, literature and technical help.
Two Axis Drilling Machine
June 21st, 2012
posted by AutoDrill
Kentucky Gauge and AutoDrill team up once again to offer a highly precise, lower cost two-axis drilling machine.
This customer wanted to drill a number of holes in a ribbed aluminum extrusion. They also wanted to do it in a repeatable manner. They chose the lower cost manual adjustment method rather than going with a fully automated Kentucky Gauge machine.
As you can see, they also chose quality over quantity. Their feed rate and RPM rates are very low so as to avoid a large burr inside the part and also to avoid the need for coolant on the process
Kentucky Gauge can be reached here and are also known as Hymark:
427 Bark Cove
Owensboro, KY 42303
United States
Sales: 270-683-3500 EXT. 211
Sales: 614-321-4506
Fax: 270-683-2500
Visit Kentucky Gauge / Hymark’s Website Here
Please CONTACT AUTODRILL to discuss your application and receive prompt product cost, literature and technical help.
AutoDrill Offers Gun Drilling Solutions Through Overseas Partnership
June 18th, 2012
posted by AutoDrill
AutoDrill LLC adds additional support for its customers who desire machines for deep hole drilling, skiving and burnishing machines, as well as design and build programs for gun barrels, hydraulic cylinders and bearing races to its capabilities.
Gun or Deep Hole Drilling Machine
AutoDrill is happy to announce a partnership with an overseas vendor who can provide a complete line of deep hole drilling, honing, skiving and burnishing machines for customers both in North America and around the globe. While some of AutoDrills competitors are offering these products for resale, AutoDrill has taken the radical step of simply referring qualified leads directly to their overseas partner to avoid the run around of working through multiple sources and contacts.
AutoDrill has extensive experience with drilling and tapping applications. Offering these machines and components to their customers is a perfect fit and should help make AutoDrill the one-stop shop for all of these types of needs. For customers requiring in-house manufacturing capability, these machines offer a solution of the highest quality with exceptionally competitive prices and support.
Companies such as Cummins, Bosch, Parker, and many others make use of this type of equipment in their processes. It is said that skiving and burnishing machines have a major market in the oil and gas pipe field. AutoDrill loves to solve difficult manufacturing requirements, while delivering product at well below the competition’s cost in most cases. They strive to be extremely competitive. The availability of these high-quality, low-cost components and manufacturing solutions can help manufacturers be more competitive.
Improving productivity for its customers, AutoDrill manufactures and distributes a range of single or multi-spindle drill and tap heads, feed units and more The company’s expertise is machining both ferrous and non-ferrous materials for industries such as automotive, aerospace, electrical, medical, off-road construction equipment, hydraulic, pneumatic and high-production drilling and tapping.
Please CONTACT USto discuss your application and receive prompt product cost, literature and technical help.
How do the Professionals Drill Holes for Things Like Carburetor Jets?
June 13th, 2012
posted by AutoDrill
Have you ever wondered how a professional drills holes? We are not talking about your local professional wrench, but about the manufacturers.
Recently a carburetor manufacturer in Kentucky needed to drill some 1/32″ holes in brass. They already had Dumore self-feeder drill in their shop but found that access to support and new machines was simply not up to their standards. So they contacted AutoDrill.
1100 Series AutoDrill for Carburetor Jet Process
After a brief discussion, it was obvious that AutoDrill’s products were of excellent quality and priced extremely competitively. So they purchased two machines immediately.
In May of 2012, the company took delivery of the drills and has been using them ever since. Because they chose the 1100 Series AutoDrill the size of the units was kept to a minimum and their drilling fixture was extremely simple. they even chose to go with a 3500 RPM, 90VDC motor with a very simple 115VAC controller package.
The industry standard ER11 style collet chuck on the self feeding drill made it possible for them to purchase an entire set of properly sized collets for different jobs. Because these collets are available from thousands of vendors around the globe, they will never have to worry about finding proprietary items to stay in business.
AutoDrill can offer units with up to 1000 lbs. of thrust at 100 PSI and spinning multiple tools for drilling, tapping, reaming, etc.
Please CONTACT US to discuss your application and receive prompt product cost, literature and technical help.
Taps Standards ISO Metric Series Chart
June 12th, 2012
posted by AutoDrill
TapsStandardsISOMetricSeriesChart.pdf
Taps Standards and Dimensions
A metric tap with an ANSI shank uses the same tap collet as an inch tap with the same shank diameter. There are some less common all-metric taps, but you often don’t find these anywhere inside the USA, Canada or Mexico.
ISO Metric Series |
||||
| Tap Size | Shank Dia. A | Shank Length B | Size of Square C | Overall Length D |
| M09 | 2.5 (.098″) | 17 | 2.1 x 5 | 25 |
| M1 | 2.5 (.098″) | 18 | 2.1 x 5 | 25 |
| M1.1 | 2.5 (.098″) | 18 | 2.1 x 5 | 25 |
| M1.2 | 2.5 (.098″) | 18 | 2.1 x 5 | 25 |
| M1.4 | 2.5 (.098″) | 21 | 2.1 x 5 | 28 |
| M1.6 | 2.5 (.098″) | 24 | 2.1 x 5 | 32 |
| M1.7 | 2.5 (.098″) | 24 | 2.1 x 5 | 32 |
| M1.8 | 2.5 (.098″) | 24 | 2.1 x 5 | 32 |
| M2 | 2.8(.110″) | 23 | 2.1 x 5 | 32 |
| M2.2 | 2.8(.110″) | 23 | 2.1 x 5 | 32 |
| M2.3 | 2.8(.110″) | 23 | 2.1 x 5 | 32 |
| M2.5 | 2.8(.110″) | 26 | 2.1 x 5 | 36 |
| M2.6 | 2.8 (.110″) | 26 | 2.1 x 5 | 36 |
| M3 | 3.5 (.138″) | 26 | 2.7 x 6 | 36 |
| M3.5 | 4.0 (.157″) | 29 | 3.0 x 6 | 40 |
| M4 | 4.5 (.177″) | 28 | 3.4 x 6 | 40 |
| M4.5 | 6.0 (.236″) | 33 | 4.9 x 8 | 45 |
| M5 | 6.0 (.236″) | 31 | 4.9 x 8 | 45 |
| M6 | 6.0 (.236″) | 34 | 4.9 x 8 | 50 |
| M7 | 6.0 (.236″) | 34 | 4.9 x 8 | 50 |
| M8 | 6.0 (.236″) | 38 | 4.9 x 8 | 56 |
| M9 | 7.0 (.275″) | 38 | 5.5 x 8 | 56 |
| M10 | 7.0 (.275″) | 43 | 5.5 x 8 | 63 |
| M11 | 8.0 (.314″) | 41 | 6.2 x 9 | 63 |
| M12 | 9.0 (.354″) | 48 | 7.0 x 10 | 70 |
| M14 | 11.0 (.433″) | 45 | 9.0 x 12 | 70 |
| M16 | 12.0 (.472″) | 42 | 9.0 x 12 | 70 |
| M18 | 14.0 (.552″) | 48 | 11.0 x 14 | 80 |
| M20 | 16.0 (.629″) | 48 | 12.0 x 15 | 80 |
| M22 | 18.0 (.708″) | 58 | 14.5 x 17 | 90 |
| M24 | 18.0 (.708″) | 68 | 14.5 x 17 | 100 |
| M27 | 20.0 (.787″) | 64 | 16.0 x 19 | 100 |
| M30 | 22.0 (.866″) | 70 | 18.0 x 21 | 110 |
AutoDrill generally offers tapping devices for single spindle operations as well as multiple spindle operations with ER11, ER16, ER20, ER25, ER32 and ER40 spindle types. We also offer TRxx and ASA style spindles as well as custom spindles if needed.
